310 SERIES PNEUMATIC Manufacturers

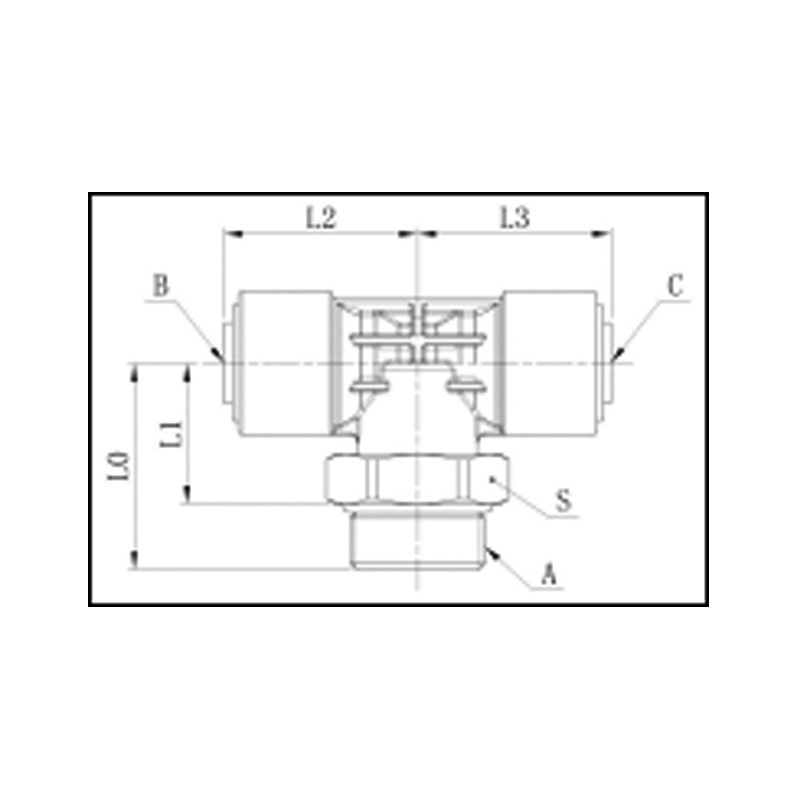

Male Branch Tee

Model	Thread A	Nylon tube specification B	Nylon tube specification C	Hexagonal distance between opposite sides S	LO	L1	L2	L3
5XJ-N1b	NPT1/8	6×1	6×1	17	1.10	0.71	0.98	0.98
5XJ-N1b		6×1	8×1	17	1.18	0.79	1.02	1.06
5XJ-N1c		8×1	8×1	17	1.18	0.79	1.06	1.06
5XJ-N2b	NPT1/4	6×1	6×1	15	1.26	0.71	0.98	0.98
5XJ-N2bc		6×1	8×1	17	1.34	0.79	1.02	1.06
5XJ-N2bd		6×1	10×1.25	21	1.38	0.83	1.06	1.14
5XJ-N2c		8×1	8×1	17	1.34	0.79	1.06	1.06
5XJ-N2ce		8×1	12×1.5	21	1.42	0.87	1.14	1.26
5XJ-N2d		10×1.25	10×1.25	21	1.38	0.83	1.14	1.14
5XJ-N2e		12×1.5	12×1.5	21	1.42	0.87	1.26	1.26
5XJ-N3b	NPT3/8	6×1	6×1	22	1.26	0.71	0.98	0.98
5XJ-N3bc		6×1	8×1	22	1.34	0.79	1.02	1.06
5XJ-N3bd		6×1	10×1.25	22	1.38	0.83	1.06	1.14
5XJ-N3bf		6×1	14×1.5	24	1.50	0.94	1.10	1.42
5XJ-N3c		8×1	8×1	22	1.34	0.79	1.06	1.06
5XJ-N3ce		8×1	12×1.5	22	1.42	0.87	1.14	1.26
5XJ-N3d		10×1.25	10×1.25	22	1.38	0.83	1.14	1.14
5XJ-N3df		10×1.25	14×1.5	24	1.50	0.94	1.22	1.42
5XJ-N3e		12×1.5	12×1.5	22	1.42	0.87	1.26	1.26
5XJ-N3f		14×1.5	14×1.5	24	1.50	0.94	1.42	1.42
5XJ-M1b	M10×1	6×1	6×1	15	1.02	0.71	0.98	0.98
5XJ-M1bc		6×1	8×1	17	1.10	0.79	1.02	1.06
5XJ-M1bd		6×1	10×1.25	21	1.14	0.83	1.06	1.14
5XJ-M1c		8×1	8×1	17	1.10	0.79	1.06	1.06
5XJ-M1ce		8×1	12×1.5	21	1.18	0.87	1.14	1.26
5XJ-M1d		10×1.25	10×1.25	21	1.14	0.83	1.14	1.14
5XJ-M1e		12×1.5	12×1.5	21	1.18	0.87	1.26	1.26
5XJ-M2b	M12×1.5	6×1	6×1	17	1.06	0.71	0.98	0.98
5XJ-M2bc		6×1	8×1	17	1.14	0.79	1.02	1.06
5XJ-M2bd		6×1	10×1.25	21	1.18	0.83	1.06	1.14
5XJ-M2c		8×1	8×1	17	1.14	0.79	1.06	1.06
5XJ-M2ce		8×1	12×1.5	21	1.22	0.87	1.14	1.26
5XJ-M2d		10×1.25	10×1.25	21	1.18	0.83	1.14	1.14
5XJ-M2e		12×1.5	12×1.5	21	1.22	0.87	1.26	1.26
5XJ-M3b	M14×1.5	6×1	6×1	21	1.14	0.71	0.98	0.98
5XJ-M3bc		6×1	8×1	21	1.22	0.79	1.02	1.06
5XJ-M3bd		6×1	10×1.25	21	1.26	0.83	1.06	1.14
5XJ-M3bf		6×1	14×1.5	24	1.38	0.94	1.10	1.42
5XJ-M3c		8×1	8×1	21	1.22	0.79	1.06	1.06
5XJ-M3ce		8×1	12×1.5	21	1.30	0.87	1.14	1.26
5XJ-M3d		10×1.25	10×1.25	21	1.26	0.83	1.14	1.14
5XJ-M3df		10×1.25	14×1.5	24	1.38	0.94	1.22	1.42
5XJ-M3e		12×1.5	12×1.5	21	1.30	0.87	1.26	1.26
5XJ-M3f		14×1.5	14×1.5	24	1.38	0.94	1.42	1.42
5XJ-M4b	M16×1.5	6×1	6×1	21	1.14	0.71	0.98	0.98
5XJ-M4bc		6×1	8×1	21	1.22	0.79	1.02	1.06
5XJ-M4bd		6×1	10×1.25	21	1.26	0.83	1.06	1.14
5XJ-M4bf		6×1	14×1.5	24	1.38	0.94	1.10	1.42
5XJ-M4c		8×1	8×1	21	1.22	0.79	1.06	1.06
5XJ-M4ce		8×1	12×1.5	21	1.30	0.87	1.14	1.26
5XJ-M4d		10×1.25	10×1.25	21	1.26	0.83	1.14	1.14
5XJ-M4df		10×1.25	14×1.5	24	1.38	0.94	1.22	1.42
5XJ-M4e		12×1.5	12×1.5	21	1.30	0.87	1.26	1.26
5XJ-M4f		14×1.5	14×1.5	24	1.38	0.94	1.42	1.42
5XJ-M5bd	M18×1.5	6×1	10×1.25	24	1.30	0.87	1.06	1.14
5XJ-M5bf		6×1	14×1.5	24	1.38	0.94	1.10	1.42
5XJ-M5ce		8×1	12×1.5	24	1.34	0.91	1.14	1.26
5XJ-M5d		10×1.25	10×1.25	24	1.30	0.87	1.14	1.14
5XJ-M5df		10×1.25	14×1.5	24	1.38	0.94	1.22	1.42
5XJ-M5e		12×1.5	12×1.5	24	1.34	0.91	1.26	1.26
5XJ-M5f		14×1.5	14×1.5	24	1.38	0.94	1.42	1.42
5XJ-M6b	M22×1.5	6×1	6×1	27	1.18	0.75	0.98	0.98
5XJ-M6bc		6×1	8×1	27	1.26	0.83	1.02	1.06
5XJ-M6bd		6×1	10×1.25	27	1.30	0.87	1.06	1.14
5XJ-M6bf		6×1	14×1.5	27	1.38	0.94	1.10	1.42
5XJ-M6c		8×1	8×1	27	1.26	0.83	1.06	1.06
5XJ-M6ce		8×1	12×1.5	27	1.34	0.91	1.14	1.26
5XJ-M6d		10×1.25	10×1.25	27	1.30	0.87	1.14	1.14
5XJ-M6df		10×1.25	14×1.5	27	1.38	0.94	1.22	1.42
5XJ-M6e		12×1.5	12×1.5	27	1.34	0.91	1.26	1.26
5XJ-M6f		14×1.5	14×1.5	27	1.38	0.94	1.42	1.42

T-Way Quick Release With Test Tube Fitting

Bias Tee Quick Connect Fittings

Model	Thread A	Nylon tube specification B	Nylon tube specification C	Hexagonal distance from side S	L0	L1	L2	L3
8XJ-N1b	NPT1/8	6×1	6×1	17	2.05	1.65	0.71	0.98
8XJ-N1c	NPT1/8	8×1	8×1	17	2.20	1.81	0.79	1.06
8XJ-N2b	NPT1/4	6×1	6×1	15	2.20	1.65	0.71	0.98
8XJ-N2bd		6×1	10×1.25	21	2.40	1.85	0.87	1.06
8XJ-N2c		8×1	8×1	17	2.36	1.81	0.79	1.06
8XJ-N2ce		8×1	12×1.5	21	2.52	1.97	0.87	1.10
8XJ-N2d		10×1.25	10×1.25	21	2.52	1.97	0.83	1.14
8XJ-N2de		10×1.25	12×1.5	21	2.60	2.05	0.87	1.18
8XJ-N2e		12×1.5	12×1.5	21	2.68	2.13	0.87	1.26
8XJ-N3b	NPT3/8	6×1	6×1	22	2.24	1.65	0.71	0.98
8XJ-N3bd		6×1	10×1.25	22	2.40	1.85	0.87	1.06
8XJ-N3bf		6×1	14×1.5	24	2.68	2.13	0.94	1.14
8XJ-N3c		8×1	8×1	22	2.36	1.81	0.79	1.06
8XJ-N3ce		8×1	12×1.5	22	2.52	1.97	0.87	1.10
8XJ-N3d		10×1.25	10×1.25	22	2.52	1.97	0.83	1.14
8XJ-N3de		10×1.25	12×1.5	22	2.60	2.05	0.87	1.18
8XJ-N3df		10×1.25	14×1.5	24	2.76	2.20	0.91	1.22
8XJ-N3e		12×1.5	12×1.5	22	2.68	2.13	0.87	1.26
8XJ-N3f		14×1.5	14×1.5	24	2.91	2.36	0.94	1.42
8XJ-M1b	M10×1	6×1	6×1	15	1.97	1.65	0.71	0.98
8XJ-M1bd		6×1	10×1.25	21	2.17	1.85	0.87	1.06
8XJ-M1c		8×1	8×1	17	2.13	1.81	0.79	1.06
8XJ-M1ce		8×1	12×1.5	21	2.28	1.97	0.87	1.10
8XJ-M1d		10×1.25	10×1.25	21	2.28	1.97	0.83	1.14
8XJ-M1de		10×1.25	12×1.5	21	2.36	2.05	0.87	1.18
8XJ-M1e		12×1.5	12×1.5	21	2.44	2.13	0.87	1.26
8XJ-M2b	M12×1.5	6×1	6×1	17	2.01	1.65	0.71	0.98
8XJ-M2bd		6×1	10×1.25	21	2.20	1.85	0.87	1.06
8XJ-M2c		8×1	8×1	17	2.17	1.81	0.79	1.06
8XJ-M2ce		8×1	12×1.5	21	2.32	1.97	0.87	1.10
8XJ-M2d		10×1.25	10×1.25	21	2.32	1.97	0.83	1.14
8XJ-M2de		10×1.25	12×1.5	21	2.40	2.05	0.87	1.18
8XJ-M2e		12×1.5	12×1.5	21	2.48	2.13	0.87	1.26
8XJ-M3b	M14×1.5	6×1	6×1	21	2.09	1.65	0.71	0.98
8XJ-M3bd		6×1	10×1.25	21	2.28	1.85	0.87	1.06
8XJ-M3bf		6×1	14×1.5	24	2.60	2.17	0.94	1.14
8XJ-M3c		8×1	8×1	21	2.24	1.81	0.79	1.06
8XJ-M3e		8×1	12×1.5	21	2.40	1.97	0.87	1.10
8XJ-M3d		10×1.25	10×1.25	21	2.40	1.97	0.83	1.14
8XJ-M3de		10×1.25	12×1.5	21	2.48	2.05	0.87	1.18
8XJ-M3df		10×1.25	14×1.5	24	2.64	2.20	0.91	1.22
8XJ-M3e		12×1.5	12×1.5	21	2.56	2.13	0.87	1.26
8XJ-M3f		14×1.5	14×1.5	24	2.80	2.36	0.98	1.42
8XJ-M4b	M16×1.5	6×1	6×1	21	2.09	1.65	0.71	0.98
8XJ-M4bd		6×1	10×1.25	21	2.28	1.85	0.87	1.06
8XJ-M4bf		6×1	14×1.5	24	2.60	2.17	0.94	1.14
8XJ-M4c		8×1	8×1	21	2.24	1.81	0.79	1.06
8XJ-M4ce		8×1	12×1.5	21	2.40	1.97	0.87	1.10
8XJ-M4d		10×1.25	10×1.25	21	2.40	1.97	0.83	1.14
8XJ-M4de		10×1.25	12×1.5	21	2.48	2.05	0.87	1.18
8XJ-M4df		10×1.25	14×1.5	24	2.64	2.20	0.91	1.22
8XJ-M4e		12×1.5	12×1.5	21	2.56	2.13	0.87	1.26
8XJ-M4f		14×1.5	14×1.5	24	2.80	2.36	0.98	1.42
8XJ-M5bd	M18×1.5	6×1	10×1.25	24	2.32	1.89	0.91	1.06
8XJ-M5bf		6×1	14×1.5	24	2.60	2.17	0.94	1.14
8XJ-M5ce		8×1	12×1.5	24	2.44	2.01	0.91	1.10
8XJ-M5d		10×1.25	10×1.25	24	2.44	2.01	0.87	1.14
8XJ-M5de		10×1.25	12×1.5	24	2.52	2.09	0.91	1.18
8XJ-M5df		10×1.25	14×1.5	24	2.64	2.20	0.91	1.22
8XJ-M5e		12×1.5	12×1.5	24	2.60	2.17	0.91	1.26
8XJ-M5f		14×1.5	14×1.5	24	2.80	2.36	0.98	1.42
8XJ-M6b	M22×1.5	6×1	6×1	27	2.13	1.69	0.75	0.98
8XJ-M6bd		6×1	10×1.25	27	2.32	1.89	0.91	1.06
8XJ-M6bf		6×1	14×1.5	27	2.60	2.17	0.94	1.14
8XJ-M6c		8×1	8×1	27	2.28	1.85	0.83	1.06
8XJ-M6ce		8×1	12×1.5	27	2.44	2.01	0.91	1.10
8XJ-M6d		10×1.25	10×1.25	27	2.44	2.01	0.87	1.14
8XJ-M6de		10×1.25	12×1.5	27	2.52	2.09	0.91	1.18
8XJ-M6df		10×1.25	14×1.5	27	2.64	2.20	0.91	1.22
8XJ-M6e		12×1.5	12×1.5	27	2.60	2.17	0.91	1.26
8XJ-M6f		14×1.5	14×1.5	27	2.80	2.36	0.98	1.42

Bias Tee Quick Plug With Test Tube Fitting

F-Type Quick Connect Fittings

Model	Thread A	Nylon tube specification B	Nylon tube specification C	Hexagonal distance from side S	LO	L1	L2	L3
10XJ-N1b	NPT1/8	6×1	6×1	17	1.81	1.42	0.71	0.98
10XJ-N1bc		6×1	8×1	17	1.89	1.50	0.75	1.02
10XJ-N1C		8×1	8×1	17	1.97	1.57	0.79	1.06
10XJ-N2b	NPT1/4	6×1	6×1	15	1.97	1.42	0.71	0.98
10XJ-N2bc		6×1	8×1	17	2.05	1.50	0.75	1.02
10XJ-N2bd		6×1	10×1.25	21	2.17	1.61	0.83	1.14
10XJ-N2be		6×1	12×1.5	21	2.24	1.69	0.87	1.26
10XJ-N2c		8×1	8×1	17	2.13	1.57	0.79	1.06
10XJ-N2cd		8×1	10×1.25	21	2.20	1.65	0.83	1.14
10XJ-N2ce		8×1	12×1.5	21	2.28	1.73	0.87	1.26
10XJ-N2d		10×1.25	10×1.25	21	2.24	1.69	0.83	1.14
10XJ-N2e		12×1.5	12×1.5	21	2.36	1.81	0.87	1.26
10XJ-N3b	NPT3/8	6×1	6×1	22	1.97	1.42	0.71	0.98
10XJ-N3bc		6×1	8×1	22	2.05	1.50	0.75	1.02
10XJ-N3bd		6×1	10×1.25	22	2.17	1.61	0.83	1.14
10XJ-N3be		6×1	12×1.5	22	2.24	1.69	0.87	1.26
10XJ-N3bf		6×1	14×1.5	24	2.48	1.93	1.02	1.42
10XJ-N3c		8×1	8×1	22	2.13	1.57	0.79	1.06
10XJ-N3cd		8×1	10×1.25	22	2.20	1.65	0.83	1.14
10XJ-N3ce		8×1	12×1.5	22	2.28	1.73	0.87	1.26
10XJ-N3d		10×1.25	10×1.25	22	2.24	1.69	0.83	1.14
10XJ-N3df		10×1.25	14×1.5	24	2.44	1.89	0.87	1.42
10XJ-N3e		12×1.5	12×1.5	24	2.36	1.81	0.87	1.26
10XJ-N3f		14×1.5	14×1.5	27	2.87	2.32	1.18	1.42
10XJ-M1b	M10×1	6×1	6×1	15	1.73	1.42	0.71	0.98
10XJ-M1bc		6×1	8×1	17	1.81	1.50	0.75	1.02
10XJ-M1bd		6×1	10×1.25	21	1.93	1.61	0.83	1.14
10XJ-M1be		6×1	12×1.5	21	2.01	1.69	0.87	1.26
10XJ-M1c		8×1	8×1	17	1.89	1.57	0.79	1.06
10XJ-M1cd		8×1	10×1.25	21	1.97	1.65	0.83	1.14
10XJ-M1ce		8×1	12×1.5	21	2.05	1.73	0.87	1.26
10XJ-M1d		10×1.25	10×1.25	21	2.01	1.69	0.83	1.14
10XJ-M1e		12×1.5	12×1.5	21	2.13	1.81	0.87	1.26
10XJ-M2b	M12×1.5	6×1	6×1	17	1.77	1.42	0.71	0.98
10XJ-M2bc		6×1	8×1	17	1.85	1.50	0.75	1.02
10XJ-M2bd		6×1	10×1.25	21	1.97	1.61	0.83	1.14
10XJ-M2be		6×1	12×1.5	21	2.05	1.69	0.87	1.26
10XJ-M2c		8×1	8×1	17	1.93	1.57	0.79	1.06
10XJ-M2cd		8×1	10×1.25	21	2.01	1.65	0.83	1.14
10XJ-M2ce		8×1	12×1.5	21	2.09	1.73	0.87	1.26
10XJ-M2d		10×1.25	10×1.25	21	2.05	1.69	0.83	1.14
10XJ-M2e		12×1.5	12×1.5	21	2.17	1.81	0.87	1.26
10XJ-M3b	M14×1.5	6×1	6×1	21	1.85	1.42	0.71	0.98
10XJ-M3bc		6×1	8×1	21	1.93	1.50	0.75	1.02
10XJ-M3bd		6×1	10×1.25	21	2.05	1.61	0.83	1.14
10XJ-M3be		6×1	12×1.5	21	2.13	1.69	0.87	1.26
10XJ-M3bf		6×1	14×1.5	24	2.36	1.93	1.02	1.42
10XJ-M3c		8×1	8×1	21	2.01	1.57	0.79	1.06
10XJ-M3cd		8×1	10×1.25	21	2.09	1.65	0.83	1.14
10XJ-M3ce		8×1	12×1.5	21	2.17	1.73	0.87	1.26
10XJ-M3d		10×1.25	10×1.25	21	2.13	1.69	0.83	1.14
10XJ-M3df		10×1.25	14×1.5	24	2.36	1.93	0.91	1.42
10XJ-M3e		12×1.5	12×1.5	21	2.24	1.81	0.87	1.26
10XJ-M3f		14×1.5	14×1.5	27	2.80	2.36	1.22	1.42
10XJ-M4b	M16×1.5	6×1	6×1	21	1.85	1.42	0.71	0.98
10XJ-M4bc		6×1	8×1	21	1.93	1.50	0.75	1.02
10XJ-Mbd		6×1	10×1.25	21	2.05	1.61	0.83	1.14
10XJ-M4be		6×1	12×1.5	21	2.13	1.69	0.87	1.26
10XJ-M4bf		6×1	14×1.5	24	2.36	1.93	1.02	1.42
10XJ-M4c		8×1	8×1	21	2.01	1.57	0.79	1.06
10XJ-M4cd		8×1	10×1.25	21	2.09	1.65	0.83	1.14
10XJ-M4cf		8×1	12×1.5	21	2.17	1.73	0.87	1.26
10XJ-M4d		10×1.25	10×1.25	21	2.13	1.69	0.83	1.14
10XJ-M4df		10×1.25	14×1.5	24	2.36	1.93	0.91	1.42
10XJ-M4e		12×1.5	12×1.5	21	2.24	1.81	0.87	1.26
10XJ-M4f		14×1.5	14×1.5	27	2.80	2.36	1.22	1.42
10XJ-M5bd	M18×1.5	6×1	10×1.25	24	2.09	1.65	0.87	1.14
10XJ-M5be		6×1	12×1.5	24	2.17	1.73	0.91	1.26
10XJ-M5bf		6×1	14×1.5	24	2.36	1.93	1.02	1.42
10XJ-M5cd		8×1	10×1.25	24	2.13	1.69	0.87	1.14
10XJ-M5ce		8×1	12×1.5	24	2.20	1.77	0.91	1.26
10XJ-M5d		10×1.25	10×1.25	24	2.17	1.73	0.87	1.14
10XJ-M5df		10×1.25	14×1.5	24	2.36	1.93	0.91	1.42
10XJ-M5e		12×1.5	12×1.5	24	2.28	1.85	0.91	1.26
10XJ-M5f		14×1.5	14×1.5	27	2.80	2.36	1.22	1.42
10XJ-M6b	M22×1.5	6×1	6×1	27	1.89	1.46	0.75	0.98
10XJ-M6bc		6×1	8×1	27	1.97	1.54	0.79	1.02
10XJ-M6bd		6×1	10×1.25	27	2.09	1.65	0.87	1.14
10XJ-M6be		6×1	12×1.5	27	2.17	1.73	0.91	1.26
10XJ-M6bf		6×1	14×1.5	27	2.36	1.93	1.02	1.42
10XJ-M6c		8×1	8×1	27	2.05	1.61	0.83	1.06
10XJ-M6cd		8×1	10×1.25	27	2.13	1.69	0.87	1.14
10XJ-M6ce		8×1	12×1.5	27	2.20	1.77	0.91	1.26
10XJ-M6d		10×1.25	10×1.25	27	2.17	1.73	0.87	1.14
10XJ-M6df		10×1.25	14×1.5	27	2.36	1.93	0.91	1.42
10XJ-M6e		12×1.5	12×1.5	27	2.28	1.85	0.91	1.26
10XJ-M6f		14×1.5	14×1.5	27	2.80	2.36	1.22	1.42

Zhuji Xiangjia Machinery Co., Ltd. is professional China 310 SERIES PNEUMATIC Manufacturers and OEM 310 SERIES PNEUMATIC factory established in 2013, the company focuses on brass fittings, customized precision parts, we can provide economic and efficient machining solutions and quality products for customers' project needs, and achieve win-win situation with professional technology and processing ability. The company has passed the certificate: Xiangjia Machinery has passed the IATF 16949:2016 system certification, and is a professional manufacturer of brass fittings, AIR BRAKE HOSE ASSEMBLIES, stainless steel fittings, ISO 9001 & ISO 14001 system certification, DOT, AMECA product certification.

Get password

Latest News

Follow the latest news to get the latest market dynamics

Straight SAE Flare SMC DOT KV2...

Part# Tube*Thread UNF Hex L XJ2H-S4D 1/4*7/16-20 14.29 27.4 XJ2H-S6E 3/8*5/8-18 17.46 33 XJ2H-S8E 1/2*5/8-18 22.23 39.5 XJ2H-S8F 1/2*3/4-18 22.23 36.8

Sep, 03, 2024

View More
Compatibility of Brass Hose Ba...

The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

Jan, 08, 2024

View More
Compatibility of Brass Hose Ba...

The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

Jan, 08, 2024

View More
Can brass pipe fittings be use...

Brass pipe fittings can be used in a variety of environments, including corrosive ones, but the extent of their corrosion resistance depends on the specific alloy composition and ...

Jan, 01, 2024

View More

Industry Knowledge Extension

What is 310 Series Pneumatic Components

The 310 Series pneumatic components are specifically designed for use in pneumatic systems, where precise control and reliable operation are critical. These components include valves, cylinders, fittings, and other accessories that form the foundation of pneumatic systems. The 310 Series is known for its quality craftsmanship, durability, and high-performance capabilities, making it a trusted choice for demanding industrial applications.Pneumatic systems play a vital role in various industries, enabling the controlled and efficient transfer of compressed air to power pneumatic tools, actuators, and other equipment. The 310 Series pneumatic components provide a versatile and reliable solution for pneumatic systems, offering a range of benefits that enhance system performance and operational efficiency.

Key Features and Benefits of the 310 Series Pneumatic Components

Durability: The 310 Series components are built to withstand the rigors of industrial environments. Constructed from robust materials, they exhibit excellent durability and resistance to wear, ensuring long-lasting performance.

Precise Control: Precision is essential in pneumatic systems, and the 310 Series components deliver just that. Whether it's valves for controlling air flow or cylinders for precise actuation, these components provide accurate and reliable control, allowing for efficient and repeatable operation.

Versatility: The 310 Series pneumatic components are designed to be versatile, accommodating a wide range of system requirements. From various sizes and configurations to compatibility with different air pressures and flow rates, these components can be tailored to suit specific application needs.

Easy Integration: Seamless integration into existing pneumatic systems is another advantage of the 310 Series components. They are designed to be compatible with industry-standard pneumatic interfaces, ensuring straightforward installation and replacement, thereby minimizing system downtime.

China Brass Fittings Manufacturers, Compression, Push On Fittings Suppliers

Web Menu

Product Search

Language

Exit Menu

310 SERIES PNEUMATIC Wholesale

PRODUCT

contact us

310 SERIES PNEUMATIC Manufacturers

Union

Union

Male Elbow Union

135° Male Elbow Union

Male Branch Tee

Union Tee

T-Way Quick Release With Test Tube Fitting

Bias Tee Quick Connect Fittings

Bias Tee Quick Plug With Test Tube Fitting

F-Type Quick Connect Fittings

Latest News

Straight SAE Flare SMC DOT KV2...

Compatibility of Brass Hose Ba...

Compatibility of Brass Hose Ba...

Can brass pipe fittings be use...

Industry Knowledge Extension

contact us

QUICK LINKS

Feedback

Mobile terminal

China Brass Fittings Manufacturers, Compression, Push On Fittings Suppliers

Web Menu

Product Search

Language

Share

Exit Menu

310 SERIES PNEUMATIC Wholesale

PRODUCT

contact us

310 SERIES PNEUMATIC Manufacturers

Latest News

Industry Knowledge Extension

contact us

QUICK LINKS

Feedback

Mobile terminal
