Home / Products / HOSE BARB

Brass Hose Barb Fittings Wholesale

PRODUCT

contact us

  • +86-13456556036

  • [email protected]

  • No. 61, Fengye Road, Diankou Town, Zhuji City, Shaoxing City, Zhejiang Province, China

Brass Hose Barb Fittings Manufacturers

  • Rigid Male Adapter

    Rigid Male Adapter

  • Rigid Male Bspt Barb Adapter

    Rigid Male Bspt Barb Adapter

  • Swivel Male Adapter

    Swivel Male Adapter

  • High Volume Male Swivel

    High Volume Male Swivel

  • Rigid Female Adapter

    Rigid Female Adapter

  • Swivel Female Adapter

    Swivel Female Adapter

  • Swivel Female Adapter-with Gasket

    Swivel Female Adapter-with Gasket

  • Female 37° J.l.C.Flare Swivel

    Female 37° J.l.C.Flare Swivel

  • Dual 45° /37° Flare swivel

    Dual 45° /37° Flare swivel

  • Female 45° Flare Swivel

    Female 45° Flare Swivel

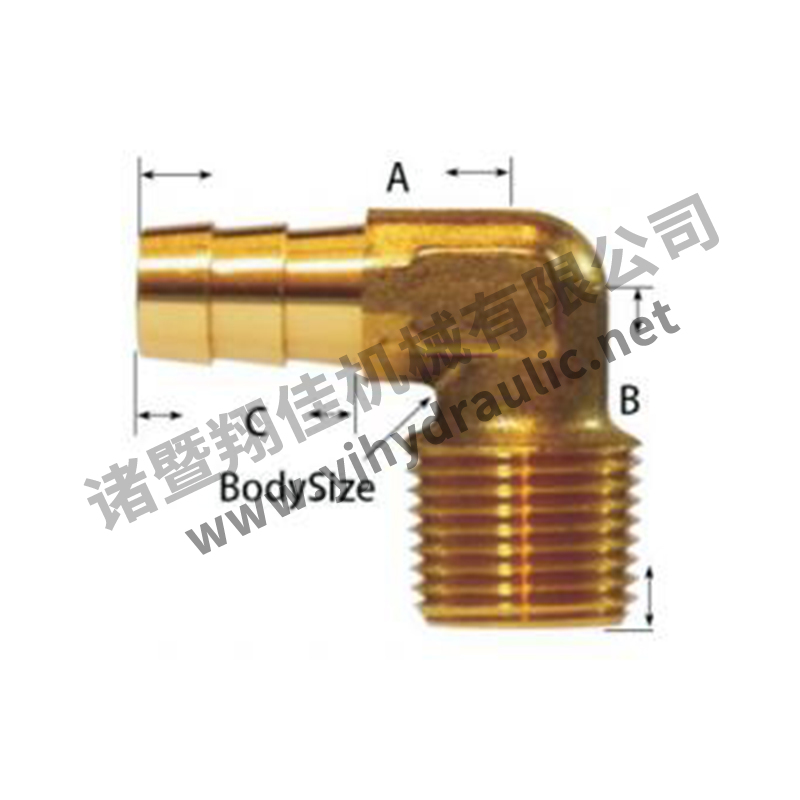

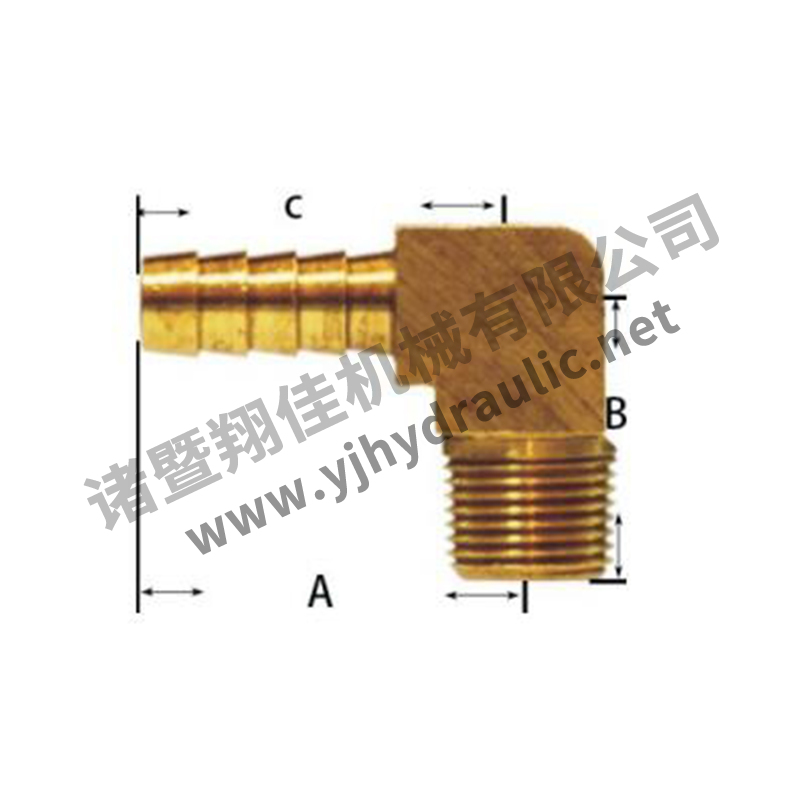

  • Barstock Hose Barb 90° Elbow

    Barstock Hose Barb 90° Elbow

  • Forged Hose Barb 90° Elbow

    Forged Hose Barb 90° Elbow

Temperature and working pressure ranges from -40° F to+ 160°F at 150 PSI maximum.
Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Tolerance : +/-0 .02 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical.
Assembly Instructions:
1.Cut hose cleanly and squarely to length. .
2. Slide clamp on hose.
3.Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4.Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right)
Material: contains lead *lead-free
"L"means light pattern .These fittings are completelyinterchangeable with fullpattern fittings, but have beenmodified insome way .This modification is usually inthe length of the pipe threads, Used in plumbing and lightindustrial applications
Zhuji Xiangjia Machinery Co., Ltd. is professional China Brass Hose Barb Fittings Manufacturers and OEM Brass Hose Barb Fittings factory established in 2013, the company focuses on brass fittings, customized precision parts, we can provide economic and efficient machining solutions and quality products for customers' project needs, and achieve win-win situation with professional technology and processing ability. The company has passed the certificate: Xiangjia Machinery has passed the IATF 16949:2016 system certification, and is a professional manufacturer of brass fittings, AIR BRAKE HOSE ASSEMBLIES, stainless steel fittings, ISO 9001 & ISO 14001 system certification, DOT, AMECA product certification.
×
Get password
submit
×
Get password
submit

Latest News

Follow the latest news to get the latest market dynamics

View More
  • Straight SAE Flare SMC DOT KV2...
    Part# Tube*Thread UNF Hex L XJ2H-S4D 1/4*7/16-20 14.29 27.4 XJ2H-S6E 3/8*5/8-18 17.46 33 XJ2H-S8E 1/2*5/8-18 22.23 39.5 XJ2H-S8F 1/2*3/4-18 22.23 36.8

    Sep, 03, 2024

    View More
  • Compatibility of Brass Hose Ba...
    The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

    Jan, 08, 2024

    View More
  • Compatibility of Brass Hose Ba...
    The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

    Jan, 08, 2024

    View More
  • Can brass pipe fittings be use...
    Brass pipe fittings can be used in a variety of environments, including corrosive ones, but the extent of their corrosion resistance depends on the specific alloy composition and ...

    Jan, 01, 2024

    View More

Industry Knowledge Extension

Brass hose barb fittings are widely used in various industries for secure and reliable connections between hoses and pipes. These fittings feature barbed ends that provide a tight grip on the hose, ensuring a leak-free connection. Brass, known for its durability and corrosion resistance, is an excellent material choice for hose barb fittings.
Brass hose barb fittings
Secure Connection: Brass hose barb fittings offer a secure connection between hoses and pipes. The barbed ends of the fittings have ridges or serrations that grip the inner diameter of the hose tightly, preventing it from slipping or coming loose under pressure. This secure connection ensures a reliable flow of fluids or gases without leaks or disruptions.
Corrosion Resistance: Brass is a corrosion-resistant material, making brass hose barb fittings suitable for a wide range of applications and environments. They can withstand exposure to moisture, chemicals, and other corrosive elements, ensuring long-lasting performance and durability.
Versatility: Brass hose barb fittings are highly versatile and compatible with various hose materials, including rubber, PVC, nylon, and silicone. This versatility allows them to be used in different industries such as plumbing, irrigation, automotive, agriculture, and manufacturing.
Easy Installation: Brass hose barb fittings are designed for easy installation. They typically require a hose clamp or a crimping tool to secure the hose onto the fitting. The straightforward installation process saves time and effort, making them an efficient choice for both professional and DIY applications.
Wide Range of Sizes and Configurations: Brass hose barb fittings are available in a wide range of sizes and configurations to suit different hose diameters and connection requirements. They come in straight barbs, elbows, tees, Y-connectors, and other shapes, providing flexibility in designing and assembling hose systems.
Temperature and Pressure Resistance: Brass hose barb fittings are capable of withstanding a wide range of temperatures and pressures. They can handle both high and low temperatures, making them suitable for applications in industries such as HVAC, pneumatic systems, and fluid transfer.
