Home / Products / BRASS PUSH IN

Brass Push In Fittings Wholesale

PRODUCT

contact us

  • +86-13456556036

  • [email protected]

  • No. 61, Fengye Road, Diankou Town, Zhuji City, Shaoxing City, Zhejiang Province, China

Brass Push In Fittings Manufacturers

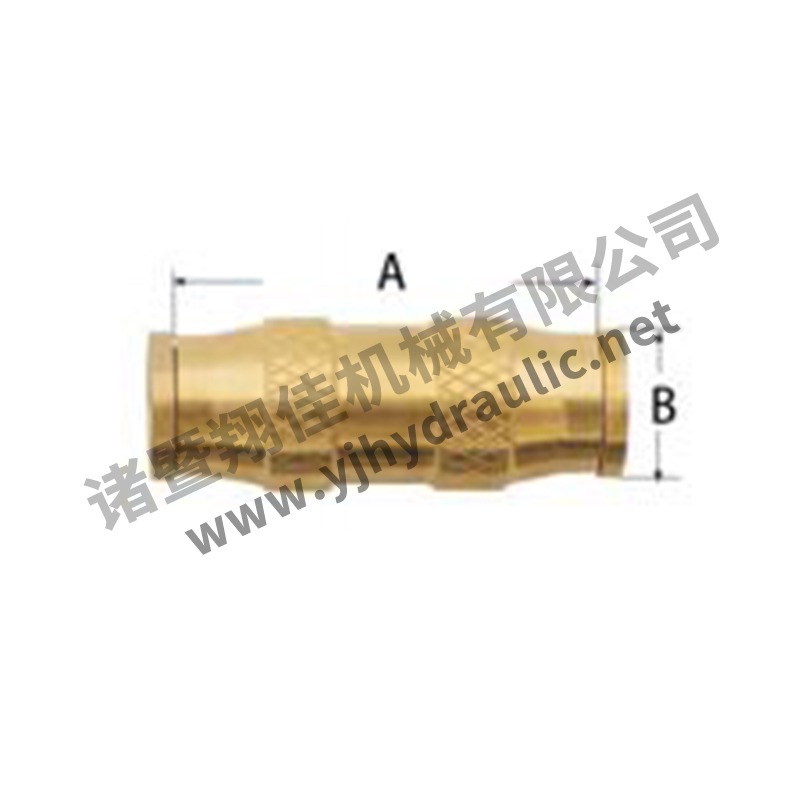

  • Union Connector

    Union Connector

  • Female Connector

    Female Connector

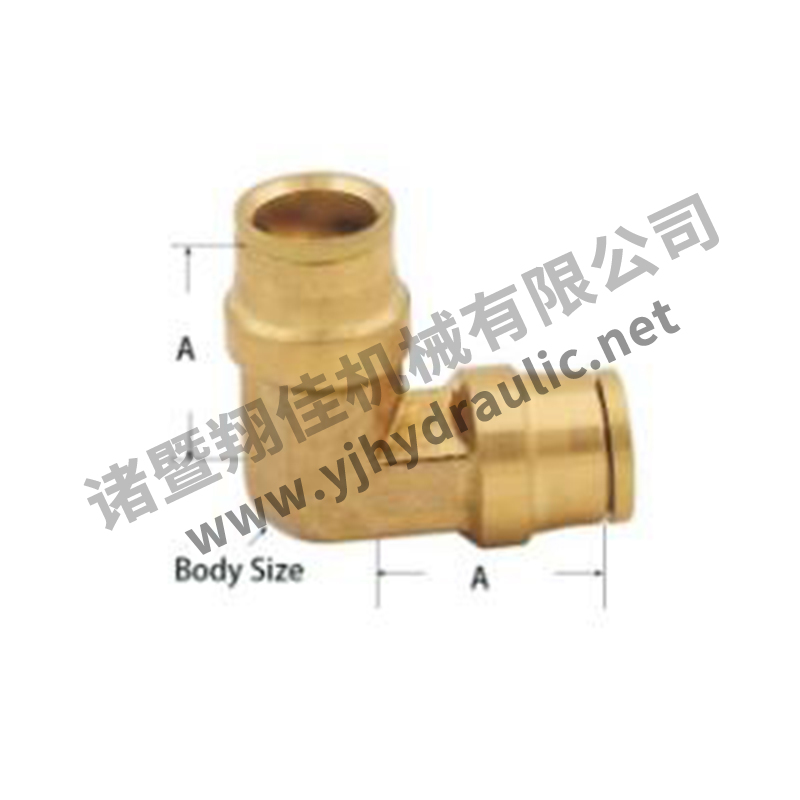

  • Union Elbow

    Union Elbow

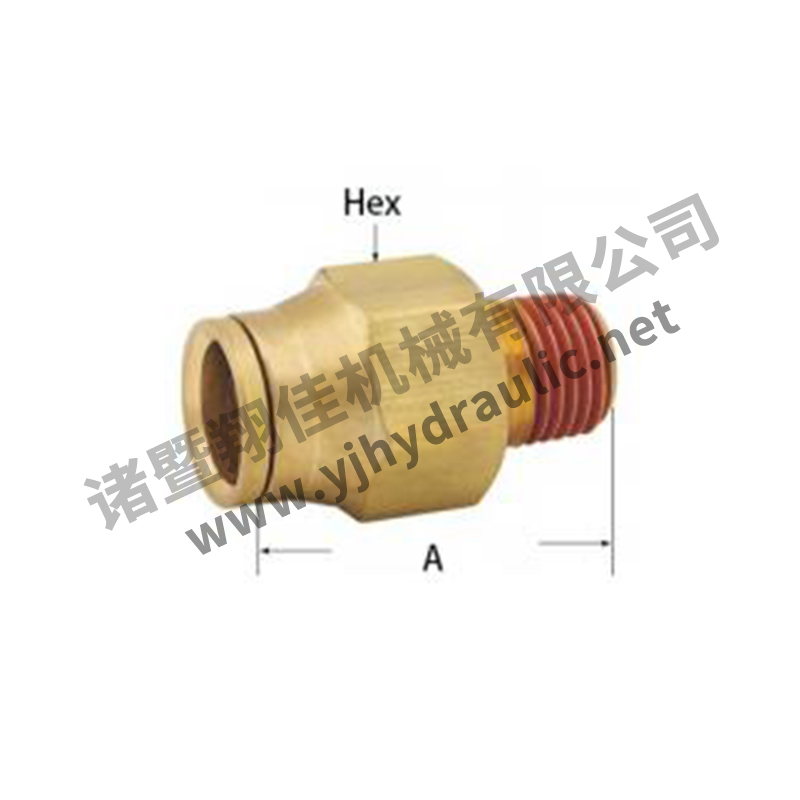

  • Male Connector

    Male Connector

  • Swivel Female Elbow

    Swivel Female Elbow

  • Female Elbow

    Female Elbow

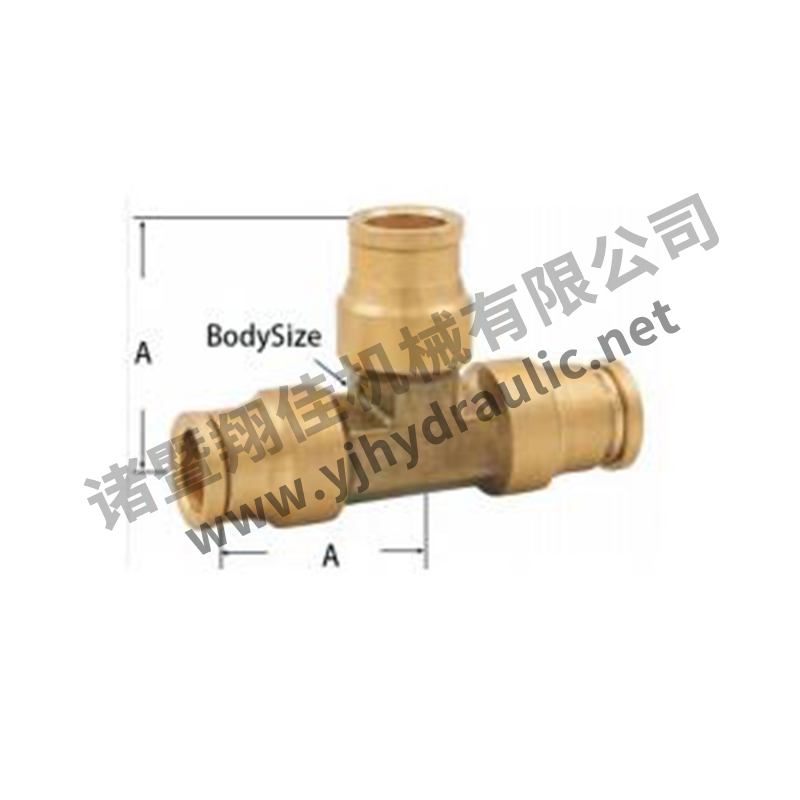

  • Union Tee

    Union Tee

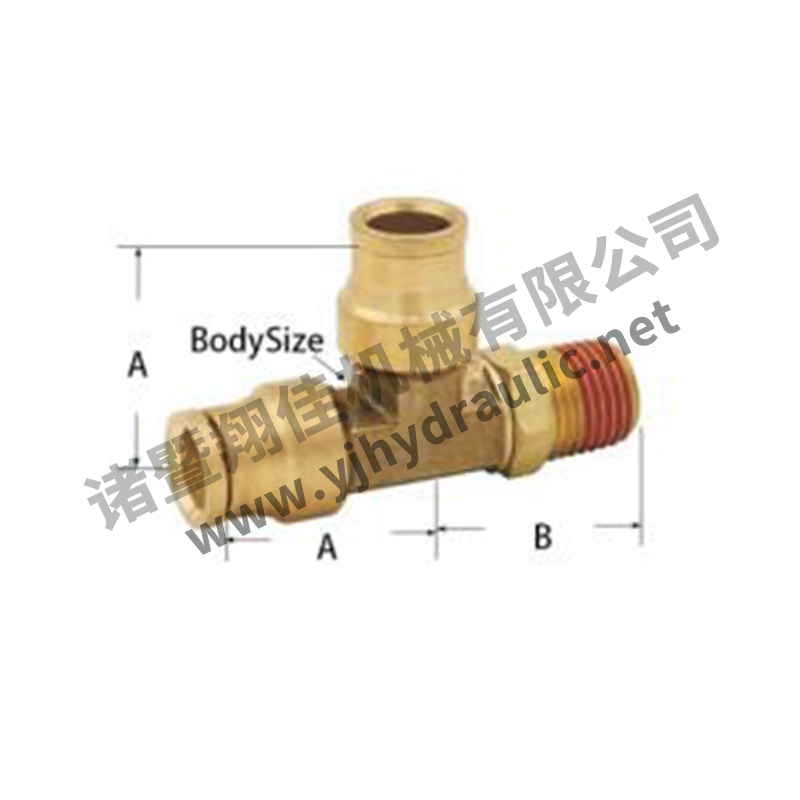

  • Swivel Male Run Tee

    Swivel Male Run Tee

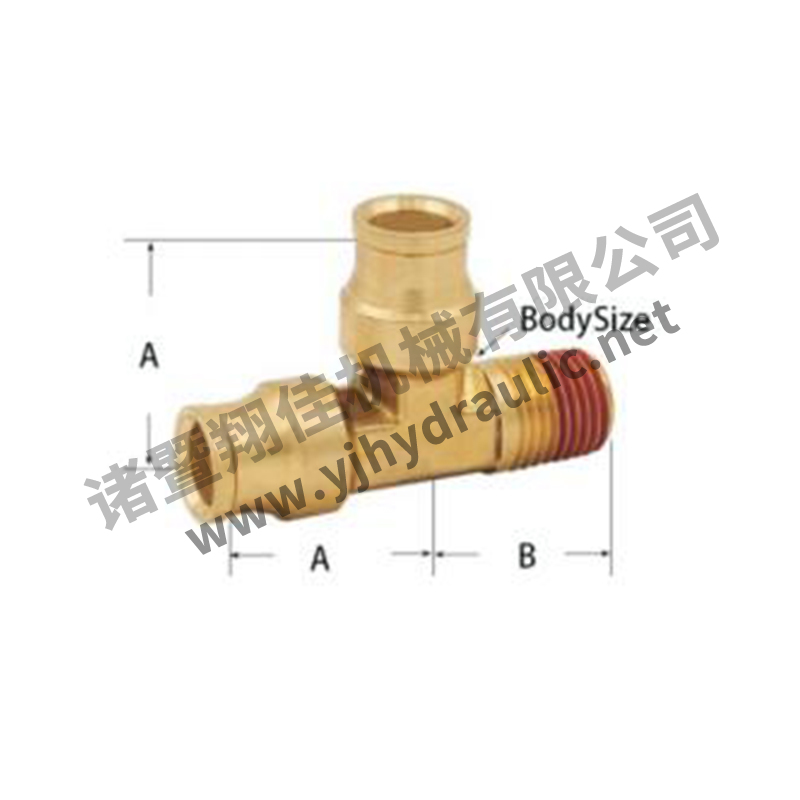

  • Fixed Male Run Tee

    Fixed Male Run Tee

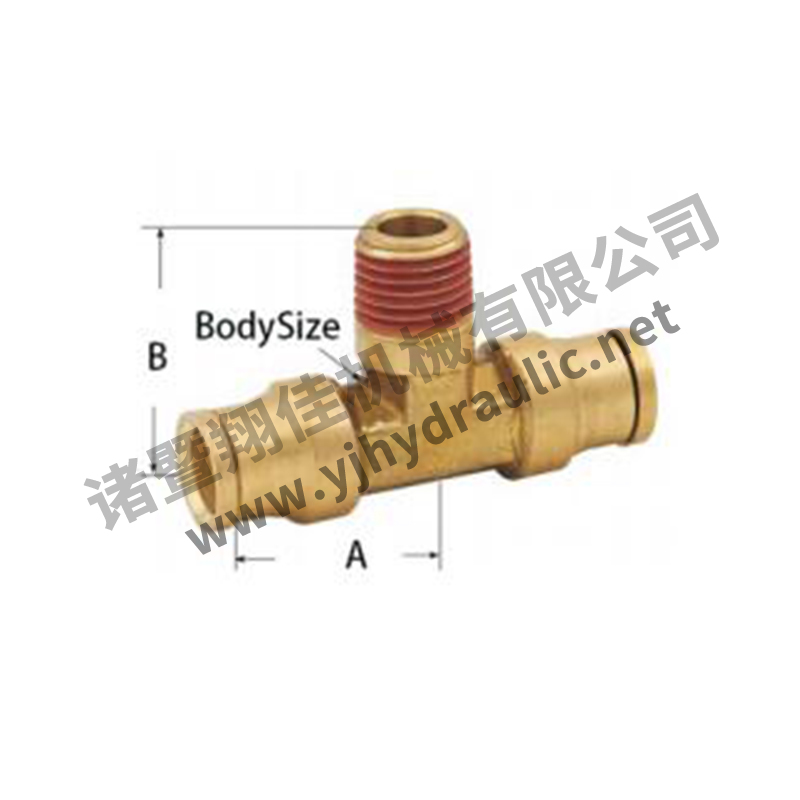

  • Fixed Male Branch Tee

    Fixed Male Branch Tee

  • Swivel Male Branch Tee

    Swivel Male Branch Tee

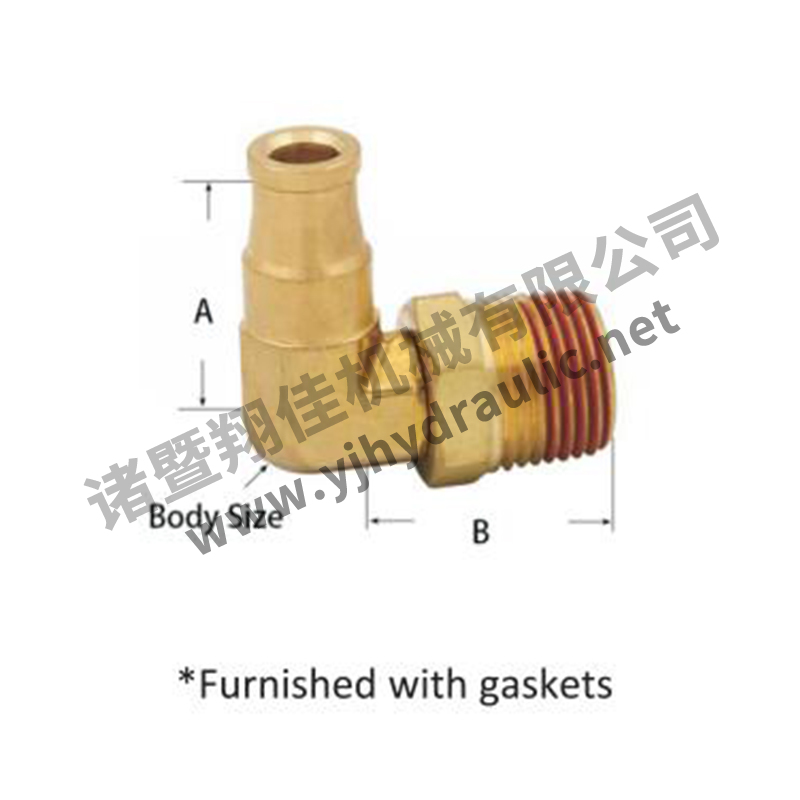

  • Swivel Male Elbow

    Swivel Male Elbow

1.Ensure that the end of the tube is cut square and is free from burrs.
2.Push the tube through the collet into the fitting. Continue pushing the tube through the‘O' ring until it bottoms on the tube stop.
3.Then pull back on the tube to reinforce the collet teeth gripping action.
4.To disconnect . First ensure there is no air present. Push the tube into the ftting until it bottoms on the tube stop. Then hold down the collet and withdraw the tube.
Body-The body has an internally machined form to secure the collet(s), “O”ring(s) and tube support(s).
It also has internal & externally machined thread form(s) for connection to ports where applicable.
Collet-The purpose of the collet is to grip the tube and ensure it is retained by the fitting at all times.
“O”Ring- -The“O”Ring is to ensure adequate interference between the tube&fitting body therefore providing a pneumatic seal at all times.
Tube Support-The tube support prevents the tube collapsing during extreme tensile loading conditions.
Such conditions are only encountered during performance testing and far exceed those experienced during normal use.
Quick Connect: Simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
Reusable: Connect and disconnect numerous times.
Full Flow Design :Provides up to 60% more flow area than conventional fittings with internal tube supports.
Positive Seal:No leaks. After tubing is inserted, sealing ring uses fluorine rubber VTN75.
Material:Contains lead "lead free.
Secure Tube Retention:Pulling on tubing only serves to tighten the connection.
Self Contained Assembly:No loose parts, brass body and insert.
Brass Construction: Elbows and tees are forged brass.
Choice :Of convenient swivel of economical stationary elbows and tees.
Straight Connectors :Have interior hex for allen key tightening where space is limited..no need to use a wrench.
Pre- Applied Polytetrafluoroethylene: based pipe sealant on all male pipe threads, saving customer additional labor.
Metric Sizes Available: Metric tube sizes from 2mm through 12mm in both standard NPT and metric pipe sizes are available on a special order basis.
Working Temperature: -10°F to 200°F (other ranges available on request)
Pipe Thread: NPTF with polytetrafluoroethylene based sealant pre-applied.
Tolerance: +/-0 .02 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical.
Zhuji Xiangjia Machinery Co., Ltd. is professional China Brass Push In Fittings Manufacturers and OEM Brass Push In Fittings factory established in 2013, the company focuses on brass fittings, customized precision parts, we can provide economic and efficient machining solutions and quality products for customers' project needs, and achieve win-win situation with professional technology and processing ability. The company has passed the certificate: Xiangjia Machinery has passed the IATF 16949:2016 system certification, and is a professional manufacturer of brass fittings, AIR BRAKE HOSE ASSEMBLIES, stainless steel fittings, ISO 9001 & ISO 14001 system certification, DOT, AMECA product certification.
×
Get password
submit
×
Get password
submit

Latest News

Follow the latest news to get the latest market dynamics

View More
  • Straight SAE Flare SMC DOT KV2...
    Part# Tube*Thread UNF Hex L XJ2H-S4D 1/4*7/16-20 14.29 27.4 XJ2H-S6E 3/8*5/8-18 17.46 33 XJ2H-S8E 1/2*5/8-18 22.23 39.5 XJ2H-S8F 1/2*3/4-18 22.23 36.8

    Sep, 03, 2024

    View More
  • Compatibility of Brass Hose Ba...
    The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

    Jan, 08, 2024

    View More
  • Compatibility of Brass Hose Ba...
    The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

    Jan, 08, 2024

    View More
  • Can brass pipe fittings be use...
    Brass pipe fittings can be used in a variety of environments, including corrosive ones, but the extent of their corrosion resistance depends on the specific alloy composition and ...

    Jan, 01, 2024

    View More

Industry Knowledge Extension

The Advantages of Brass Push-In Fittings in Fluid Systems
Brass push-in fittings have become a popular choice for fluid systems due to their numerous advantages. These fittings provide a simplified and efficient method for connecting tubing, offering benefits that enhance the overall performance and convenience of fluid systems.
One of the primary advantages of brass push-in fittings is their ease of installation. The push-to-connect mechanism eliminates the need for additional tools, clamps, or adhesives. Simply inserting the tubing into the fitting creates a secure and reliable connection. This feature saves valuable time and effort during installation, reducing assembly costs and allowing for quicker system setup.
Brass push-in fittings also offer exceptional versatility. They can accommodate a wide range of tubing materials, including nylon, polyurethane, and soft metal tubes. This versatility allows for compatibility with different fluid types, expanding the application possibilities across various industries. Additionally, these fittings come in various configurations, such as straight connectors, elbows, tees, and bulkhead fittings, offering flexibility in designing and customizing fluid systems.
Performance of Brass Push-In Fittings
Leakage is a significant concern in fluid systems, leading to decreased efficiency, increased maintenance, and potential safety hazards. Brass push-in fittings address this concern by providing reliable and leak-free performance.
The fittings incorporate built-in O-rings or seals that create a tight and secure connection between the tubing and the fitting. This design ensures a proper seal, preventing leaks and minimizing system downtime. The reliable sealing capability of brass push-in fittings makes them suitable for high-pressure applications, providing peace of mind in critical fluid system operations.
Moreover, brass push-in fittings maintain their sealing integrity even after multiple disconnections and reconnections. This reusability feature allows for system modifications, maintenance, or repairs without the need to replace the entire fitting. It adds convenience and cost-effectiveness to fluid system maintenance while preserving the reliability of the fittings.
Durability and Corrosion Resistance of Brass Push-In Fittings
In fluid systems, durability and resistance to corrosion are essential attributes. Brass push-in fittings excel in both areas, ensuring long-lasting performance in demanding environments.
Brass, the primary material used in these fittings, offers exceptional durability and strength. It can withstand high pressures, temperature fluctuations, and mechanical stresses commonly encountered in fluid systems. The robust construction of brass push-in fittings contributes to their reliability and longevity, reducing the risk of failure and the need for frequent replacements.
Additionally, brass is renowned for its corrosion resistance. It can withstand exposure to moisture, chemicals, and other corrosive elements without degrading or compromising the performance of the fittings. This corrosion resistance feature ensures the integrity of the fluid system, extending its service life and minimizing maintenance requirements.
