Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.

Pressure: See table above for working pressures at 73°F.

Vibration: Fair resistance - use long nut when greater vibration resistance is needed.

Temperature Range:

-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range.)

Used With: Aluminum,copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.

Tolerance: +/-0 .02 on all dimensions. Dimension data can change without notice.Please call us when dimensions are critical

Conformance: Meets specifications and standards of ASA, ASME and SAE.

Assembly Instructions:

1.Cut tubing to desired length.

2.Slide nut and then sleeve on tube. Threaded end“A" of nut must face toward fitting.

3.Insert tubing into fitting body. Be sure tubing is bottomed on fitting shoulder.

4.Lubricate threads and assemble nut to ftting body.

“L” at the end of a Part# means Light Pattern -These fittings are completely interchangeable with full pattern fttings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.

Material: contains lead * lead free

Zhuji Xiangjia Machinery Co., Ltd. is professional China Brass Compression Fittings Manufacturers and OEM Brass Compression Fittings factory established in 2013, the company focuses on brass fittings, customized precision parts, we can provide economic and efficient machining solutions and quality products for customers' project needs, and achieve win-win situation with professional technology and processing ability. The company has passed the certificate: Xiangjia Machinery has passed the IATF 16949:2016 system certification, and is a professional manufacturer of brass fittings, AIR BRAKE HOSE ASSEMBLIES, stainless steel fittings, ISO 9001 & ISO 14001 system certification, DOT, AMECA product certification.

Get password

Latest News

Follow the latest news to get the latest market dynamics

Straight SAE Flare SMC DOT KV2...

Part# Tube*Thread UNF Hex L XJ2H-S4D 1/4*7/16-20 14.29 27.4 XJ2H-S6E 3/8*5/8-18 17.46 33 XJ2H-S8E 1/2*5/8-18 22.23 39.5 XJ2H-S8F 1/2*3/4-18 22.23 36.8

Sep, 03, 2024

View More
Compatibility of Brass Hose Ba...

The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

Jan, 08, 2024

View More
Compatibility of Brass Hose Ba...

The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

Jan, 08, 2024

View More
Can brass pipe fittings be use...

Brass pipe fittings can be used in a variety of environments, including corrosive ones, but the extent of their corrosion resistance depends on the specific alloy composition and ...

Jan, 01, 2024

View More

Industry Knowledge Extension

Brass compression fittings are widely used in plumbing and fluid transfer systems to create reliable and leak-free connections between pipes or tubing. These fittings are designed to secure the connection by compressing a brass sleeve (also known as a ferrule) onto the pipe or tubing.

Design and Features of brass compression fittings

Compression Ring: In some brass compression fittings, a compression ring or insert is used in conjunction with the brass sleeve. The compression ring is typically made of plastic or nylon and is positioned between the brass sleeve and the fitting body. It helps to distribute the compressive force evenly and provides added stability to the connection.

Double Compression Fittings: Double compression fittings, also known as twin ferrule fittings, are a variation of brass compression fittings. They feature two brass sleeves and two compression nuts. The first sleeve creates a primary seal against the fitting body, while the second sleeve ensures a secondary seal against the pipe or tubing. This design provides enhanced sealing capability and reliability.

Fitting Types: Brass compression fittings are available in various configurations to suit different applications. Common types include straight fittings, elbows (90 degrees or 45 degrees), tees, unions, and connectors with male or female threads. This variety allows for flexibility in designing and assembling plumbing or fluid transfer systems.

Size Range: Brass compression fittings are manufactured in a wide range of sizes to accommodate different pipe or tubing diameters. They are available in standard imperial sizes (e.g., 1/4", 3/8", 1/2", etc.) and metric sizes (e.g., 6mm, 8mm, 10mm, etc.). Having a diverse size range ensures compatibility with various plumbing or fluid transfer system requirements.

Temperature and Pressure Ratings: Brass compression fittings have temperature and pressure ratings that determine their suitability for specific applications. It is essential to choose fittings that can withstand the temperature and pressure conditions of the system to ensure optimal performance and avoid potential failures.

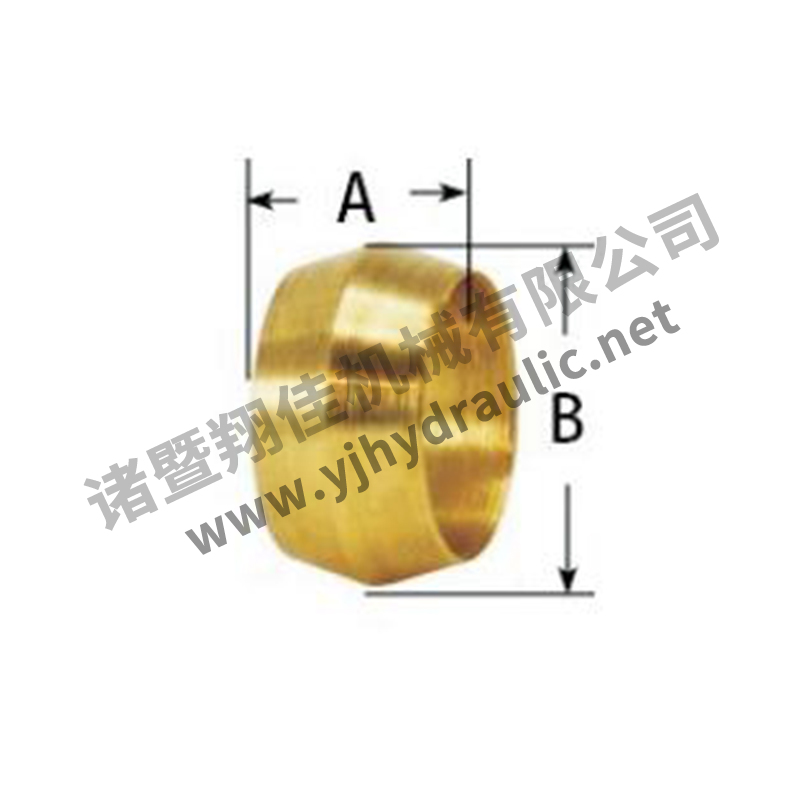

Part#	Size	A	B	Approx.wt.Lbs	Price
1105-2	1/8	0.19	0.19	0.01
1105-3	3/16	0.22	0.7	0.01
1105-4	1/4	0.25	0.34	0.01
1105-5	5/16	0.25	0.41	0.01
1105-6	3/8	0.25	0.47	0.02
1105-7	7/16	0.31	0.53	0.02
1105-8	1/2	0.38	0.59	0.02
1105-10	5/8	0.38	0.71	0.03
1105-12	3/4	0.44	0.87	0.03
1105-14	7/8	0.41	0.99	0.03
1105-1	1	0.55	1.16	0.03

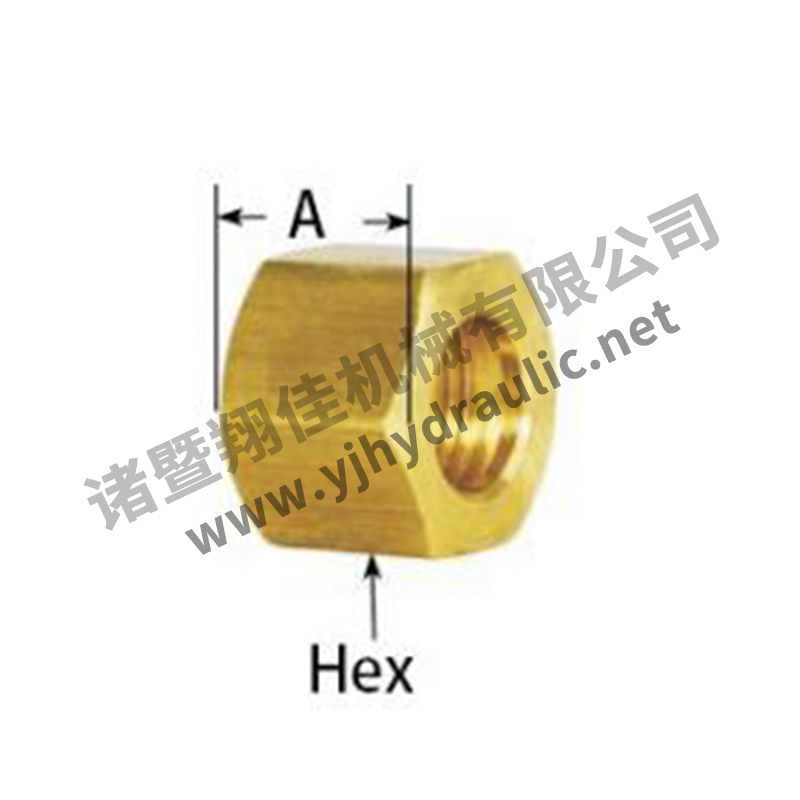

Part#	Size	Thread	A	Hex	Approx.wt.Lbs	Price
1106-2	1/8	5/16-24	0.38	0.37	0.01
1106-3	3/16	3/8-24	0.41	0.43	0.01
1106L-4	1/4	7/16-24	0.44	0.50	0.02
1106-4	1/4	7/16-24	0.44	0.50	0.02
1106-5	5/16	1/2-24	0.44	0.56	0.02
1106L-6	3/8	9/16-24	0.47	0.62	0.04
1106-6	3/8	9/16-24	0.47	0.62	0.04
1106-7	7/16	5/8-24	0.50	0.68	0.04
1106L-8	1/2	11/16-20	0.56	0.75	0.04
1106-8	1/2	11/16-20	0.62	0.81	0.04
1106L-10	5/8	13/16-18	0.56	0.87	0.06
1106-10	5/8	13/16-18	0.62	0.94	0.06
1106-12	3/4	1-18	0.68	1.12	0.08
1106-14	7/8	1-1/8-18	0.62	.25	0.10
1106-1”	1		0.94	1.38	0.15

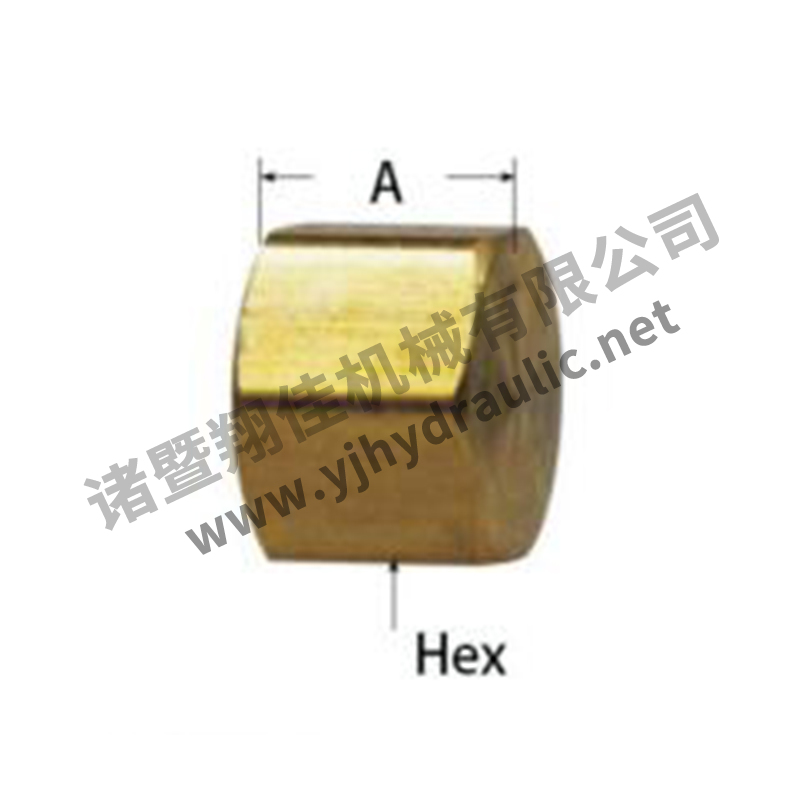

Part#	Size	A	Hex	Approx Wt.Lbs	Price
1125-4	1/4	0.44	0.50	0.02
1125-6	3/8	0.40	0.62	0.04
1125-8	1/2	0.48	0.75	0.06
1125-10	5/8	0.56	0.94	0.10

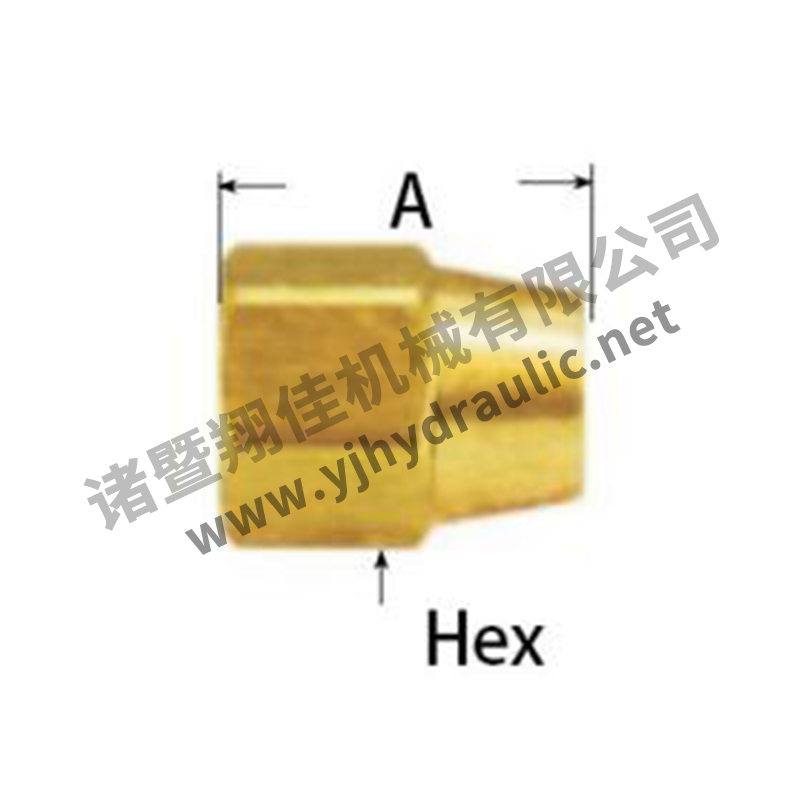

Part#	Size	A	Hex	Approx.wt.Lbs	Price
1107-2	1/8	0.50	0.37	0.01
1107-3	3/16	0.62	0.43	0.01
1107-4	1/4	0.75	0.50	0.02
1107-5	5/16	0.84	0.56	0.02
1107-6	3/8	0.97	0.62	0.04
1107-8	1/2	1.06	0.81	0.06
1107-10	5/8	1.19	0.94	0.11
1107-12	3/4	1.50	1.25	0.14

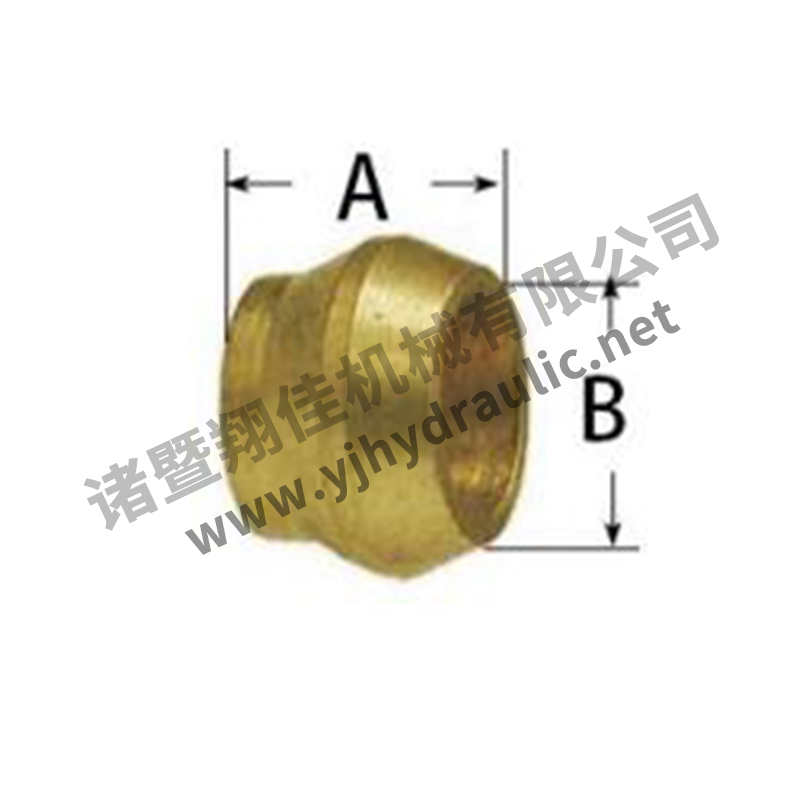

Part#	Size	A	B	Approx.wt.Lbs	Price
1118-4	1/4	0.30	0.34	0.01
1118-6	3/8	0.31	0.47	0.04
1118-5	5/16	0.40	0.40	0.01
1118-8	1/2	0.34	0.59	0.06
1118-10	5/8	0.45	0.72	0.04

China Brass Fittings Manufacturers, Compression, Push On Fittings Suppliers

Web Menu

Product Search

Language

Exit Menu

Brass Compression Fittings Wholesale

PRODUCT

contact us

Brass Compression Fittings Manufacturers

Brass Sleeve Ferrules

Brass Nut

CAP

Long Nut Compression

Compression plug

Brass Union

Reducing Union

Forged Reducing Tee

Forged Tee

Forged Male Run Tee

Male Branch Tee

Forged Tee

Latest News

Straight SAE Flare SMC DOT KV2...

Compatibility of Brass Hose Ba...

Compatibility of Brass Hose Ba...

Can brass pipe fittings be use...

Industry Knowledge Extension

contact us

QUICK LINKS

Feedback

Mobile terminal

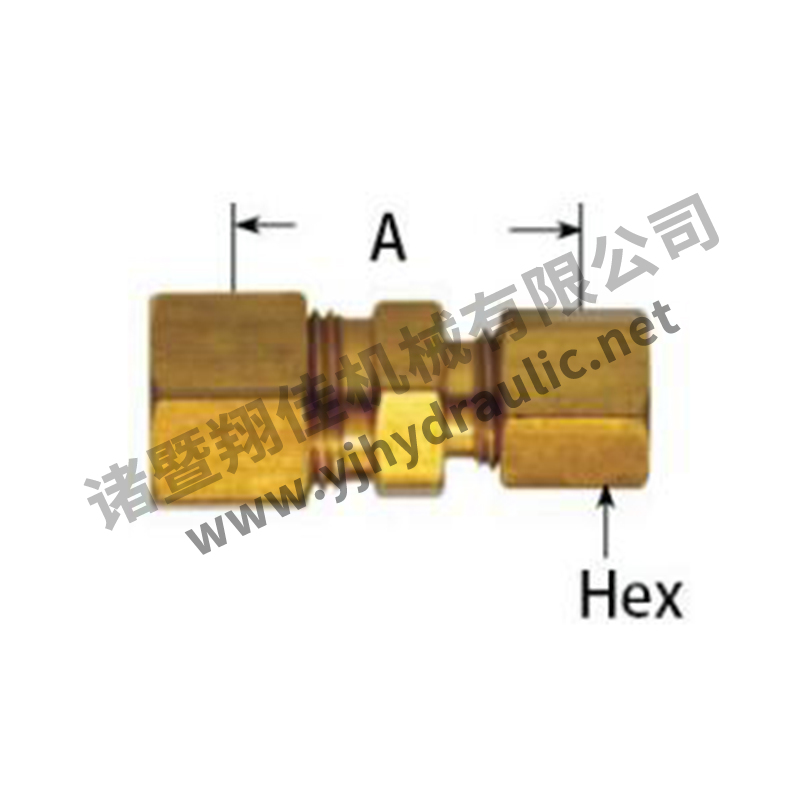

Part#	Size	A	Hex	Approx.wt.Lbs	Price
1109-4-2	1/4*1/8	0.73	0.44	0.04
1109-4-3	1/4*3/16	0.78	0.44	0.06
1109-5-4	5/16*1/4	0.81	0.5	0.06
1109-6-4	3/8*1/4	0.9	0.56	0.1
1109-6-5	3/8*5/16	0.94	0.56	0.1
1109-8-6	1/2*3/8	1.03	0.68	0.12
1109-10-6	5/8*3/8	1.03	0.81	0.15
1109-10-8	5/8*1/2	1.16	0.81	0.18
1109-14-6.	7/8*3/8	1.18	1.18	0.26
1109-14-8	7/8*1/2	1.21	1.18	0.24
1109-14-10	7/8*5/8	1.23	1.18	0.2

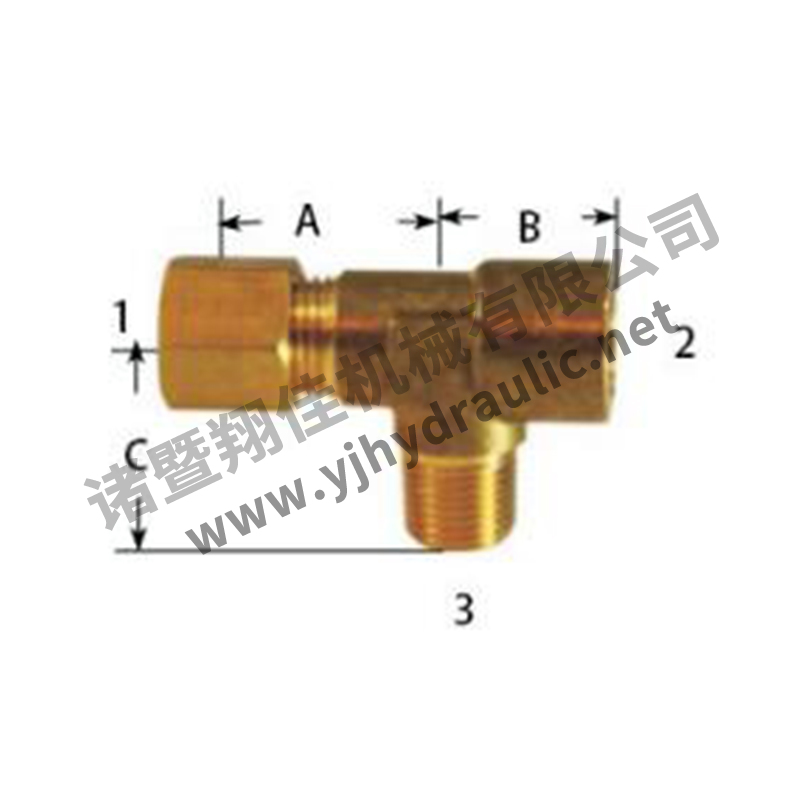

Part#	Size123	A	B	Body Size	Approx.wt.Lbs	Price
