Home / Products / PUSH ON BARB FITTINGS

Push On Hose Barb Fittings Wholesale

PRODUCT

contact us

  • +86-13456556036

  • [email protected]

  • No. 61, Fengye Road, Diankou Town, Zhuji City, Shaoxing City, Zhejiang Province, China

Push On Hose Barb Fittings Manufacturers

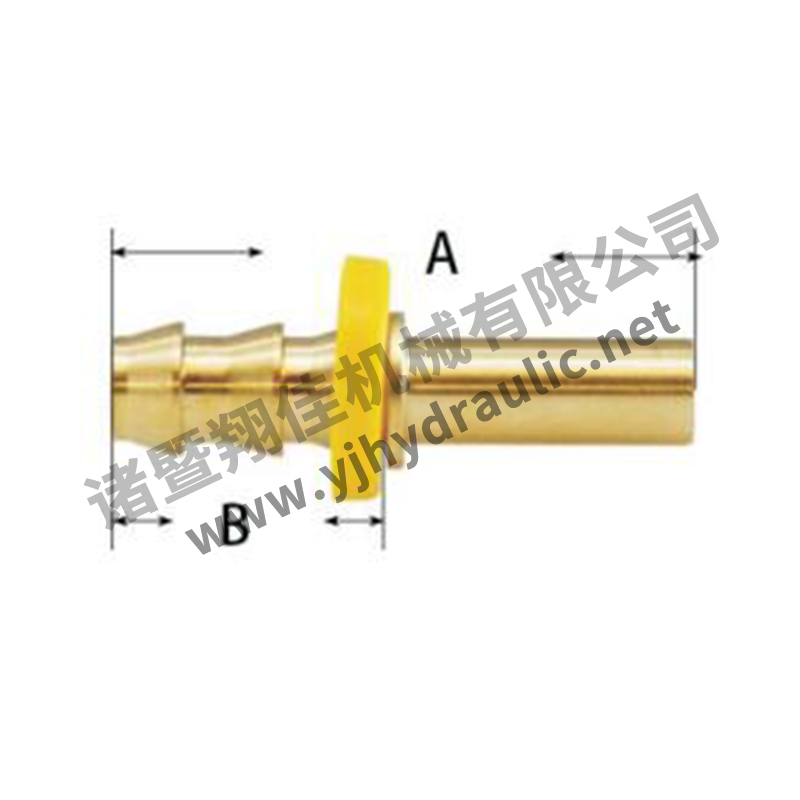

  • Hose Splicer

    Hose Splicer

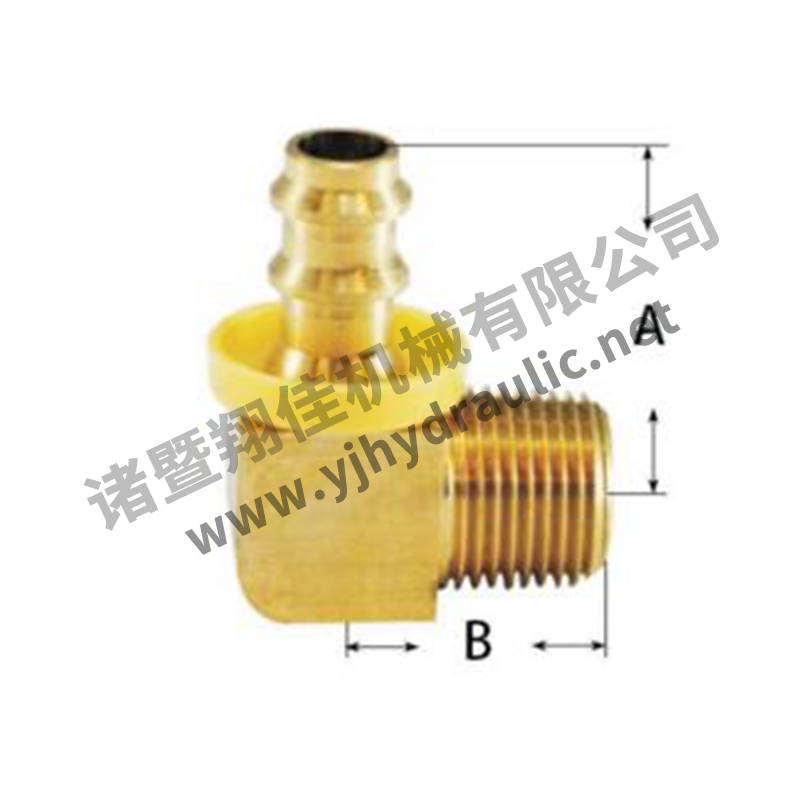

  • Male Elbow

    Male Elbow

  • Rigid Tube Adapter

    Rigid Tube Adapter

Typical Application: Low pressure Air, fuel, lubeand, oil lines
●Pressure determined by tube material and hardness. Xiang jia parts have been tested to max 150 PSI.
Advantages: Easy assembly. No clamps needed.
●Assembly Instructions:
1.Lubricate insert.
2.Hold hose at angle to insert over first barb.
3.Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Temperature Range: -40°F to 180°F. (-40°C to 82°C)
Disassembling Instructions:
1. Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
2. Bend hose and remove with a quick pull.
Material: Contains lead * lead free
Tolerance: +/- 0.02 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical
Zhuji Xiangjia Machinery Co., Ltd. is professional China Push On Hose Barb Fittings Manufacturers and OEM Push On Hose Barb Fittings factory established in 2013, the company focuses on brass fittings, customized precision parts, we can provide economic and efficient machining solutions and quality products for customers' project needs, and achieve win-win situation with professional technology and processing ability. The company has passed the certificate: Xiangjia Machinery has passed the IATF 16949:2016 system certification, and is a professional manufacturer of brass fittings, AIR BRAKE HOSE ASSEMBLIES, stainless steel fittings, ISO 9001 & ISO 14001 system certification, DOT, AMECA product certification.
×
Get password
submit
×
Get password
submit

Latest News

Follow the latest news to get the latest market dynamics

View More
  • Straight SAE Flare SMC DOT KV2...
    Part# Tube*Thread UNF Hex L XJ2H-S4D 1/4*7/16-20 14.29 27.4 XJ2H-S6E 3/8*5/8-18 17.46 33 XJ2H-S8E 1/2*5/8-18 22.23 39.5 XJ2H-S8F 1/2*3/4-18 22.23 36.8

    Sep, 03, 2024

    View More
  • Compatibility of Brass Hose Ba...
    The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

    Jan, 08, 2024

    View More
  • Compatibility of Brass Hose Ba...
    The compatibility of brass hose barb fittings refers to their suitability for use with specific types of hoses and fluids. Several factors contribute to the compatibility of these ...

    Jan, 08, 2024

    View More
  • Can brass pipe fittings be use...
    Brass pipe fittings can be used in a variety of environments, including corrosive ones, but the extent of their corrosion resistance depends on the specific alloy composition and ...

    Jan, 01, 2024

    View More

Industry Knowledge Extension

Push-on hose barb fittings, also known as push-lock or push-on fittings, are designed to create quick and secure connections between hoses and various fluid system components. These fittings feature a barbed end that allows for easy insertion of the hose, providing a reliable and leak-free connection without the need for clamps or crimping tools.
Benefits of Push-on hose barb fittings
Secure Connection: Push-on hose barb fittings provide a secure and reliable connection. The barbs on the fitting grip the inner diameter of the hose, ensuring a tight seal and preventing accidental disconnections. This feature is particularly advantageous in applications with vibrations or movements, where a secure connection is crucial to maintaining system integrity.
Quick Disconnects: Push-on hose barb fittings also facilitate quick disconnects when needed. The hose can be easily removed by compressing the fitting and pulling the hose away. This feature is beneficial during maintenance, repairs, or system modifications, allowing for easy disconnection and reconnection without the need for additional tools.
Wide Range of Applications: Push-on hose barb fittings find applications in various industries and sectors. They are commonly used in automotive fuel systems, pneumatic systems, fluid transfer systems, HVAC systems, and other applications that require secure and leak-free connections.
Pressure and Temperature Rating: Push-on hose barb fittings are designed to withstand a wide range of pressure and temperature conditions. They are commonly rated for high-pressure applications, making them suitable for use in hydraulic systems, fuel lines, and other demanding fluid handling systems.
Resistance to Vibrations: Push-on hose barb fittings provide excellent resistance to vibrations. The barbed connection ensures a secure grip on the hose, preventing unintended disconnections due to vibrations or movements. This makes them ideal for applications that involve machinery, mobile equipment, or other environments where vibrations are present.
Chemical Compatibility: These fittings are typically made from materials such as brass, aluminum, or stainless steel, which offer good chemical compatibility. They can be used with a wide range of fluids, including water, oil, fuel, and various chemicals, without the risk of degradation or corrosion.
Compact Design: Push-on hose barb fittings have a compact design, allowing for easy installation in tight spaces or areas with limited accessibility. Their streamlined design also minimizes the risk of snagging or interference with other components in the system.
